700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby crispeed » Tue Mar 01, 2011 11:39 am

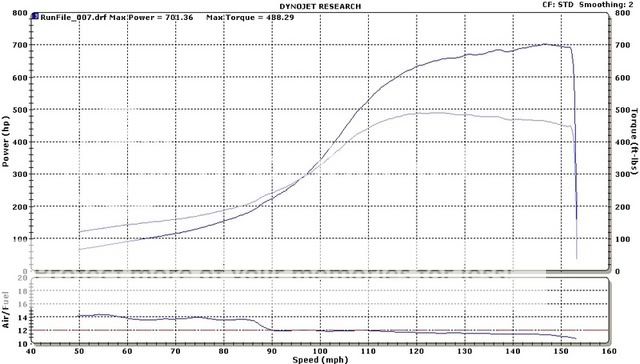

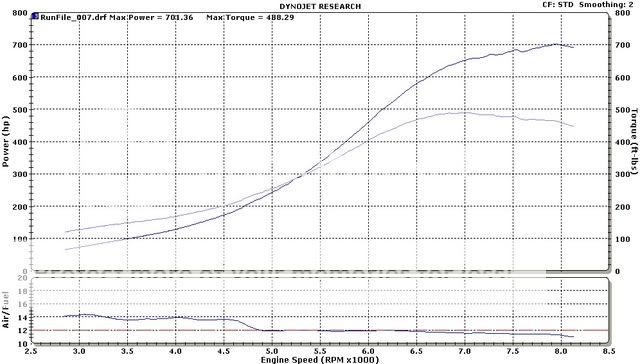

DYNO VIDEO.
http://www.youtube.com/watch?v=iMYrnDcUkXs

Here's Will's 2jz powered 1983 GMC truck built by RAW racing. It made 700whp/488wtq at 28psi using E85 fuel. Power was made through a Turbo 700R4(4speed) auto tranny. It got a stock 2jz shortblock. CYL head got HKS 280 cams, springs & retainers. Custom intake plenum using a 90mm TB. Fueling the motor is a set of 1600cc injectors, Aeromotive Eliminator fuel pump and regulator. Custom intercooler with a Tial blowoff valve. Mike's GT42 turbo and a TiAl WG controlling boost.
A Haltech Platinum Sport 2000 ecu is handling engine management duties. Ecu is also controlling AC, radiator and tranny oil cooler fans, torque converter lockup via tps and vechicle speed, boost control via boost solenoid.
All fabrication was done in house at RAW Racing.
Engine, tranny and body wire harness all done by JR Wiring Solutions.

Some Mods.
Stock 2Jz shortblock.
HKS 280 cams,springs&retainers.
Custom Intake plenum with a 90mmTB
TiAl Blowoff valve
TiAl Wastegate.
Mike's Gt42 Turbo.
Custom 4inch downpipe & exhaust system
Turbo 700R4 transmission with lockup.
Chevy 10bolt wih 4.11 gears.
Bosch1600cc injectors.
Aeromotive Eliminato pump & regulator.
MSD DIS-4 Ignition.
Haltech Platinum Sport 2000 ECU.
AWD MOTORSPORTS EVO8 GSR 8.75@167 E85
CHARLES/RAW 2JZ S2000 7.77@194 E98
NeillAutoWorks 2JZ S13 7.49@188mph E98 275 radials
MedicineManRacing R32 7.31@188mph E98 275 radials

User avatar
Ignition
Posts: 1635
Joined: Thu Nov 08, 2007 10:18 pm
Location: New Plymouth, NZ
Contact:

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby Ignition » Tue Mar 01, 2011 6:57 pm

I want a "Like" button for posts.
:D

mEr775
Posts: 1
Joined: Tue Jun 07, 2011 4:05 am

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby mEr775 » Tue Jun 14, 2011 4:23 pm

Different, but that thing is awesome!

User avatar
panapower
Posts: 14
Joined: Wed Jan 30, 2008 5:32 am
Location: NOLA/BR
Contact:

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby panapower » Tue Jun 14, 2011 11:58 pm

that's beast!

RWDragoon
Posts: 34
Joined: Fri Nov 07, 2008 2:33 am

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby RWDragoon » Sat Oct 15, 2011 9:04 am

Where did you get the 2jz to 700R4 adapter plate made? I need one!

User avatar
crispeed
Posts: 543
Joined: Fri Sep 28, 2007 4:40 pm
Location: Coral Springs Fl USA
Contact:

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby crispeed » Sat Oct 15, 2011 3:32 pm

RWDragoon wrote:Where did you get the 2jz to 700R4 adapter plate made? I need one!


305-321-3166
954-200-1099
AWD MOTORSPORTS EVO8 GSR 8.75@167 E85
CHARLES/RAW 2JZ S2000 7.77@194 E98
NeillAutoWorks 2JZ S13 7.49@188mph E98 275 radials
MedicineManRacing R32 7.31@188mph E98 275 radials

Kodfcokret
Posts: 9
Joined: Mon Jun 16, 2014 8:19 pm

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby Kodfcokret » Tue Jun 17, 2014 1:55 am

Thank you for the informative posts.

serwusek
Posts: 3
Joined: Wed Jul 15, 2015 1:03 am

Re: 700hp 2JZ Powered GMC/Chevy C10 Truck.

Postby serwusek » Wed Jul 15, 2015 1:08 am

wow that's great. and how it looks. Is amazing
