Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Mon May 16, 2011 6:45 am

I have a Lancia Stratos Replica with a Turbocharged 3.2 alfa V6 Running a sport 2000.

The car is being rebuilt at present, so no power figures yet, but the target is 500BHP.
CAE Corse I - Lancia stratos Replica With Group IV body Kit



3.2 Alfa V6 24 Valve Engine
8.5:1 CP Pistons
THS Forged Rods
Spesso racing Gaskets
Garrett GT 3582R Turbo 0.82 A/R Tial Stainles Turbine Housing
Tial MVR Wastegate
Tial 50mm BOV
Fuel Lab Prodigy Fuel Pump, Fuel Lab, Filters & Pressure Regulator
TTV Light Weight Flywheel
Tilton Twin Plate Ceremetalic Clutch

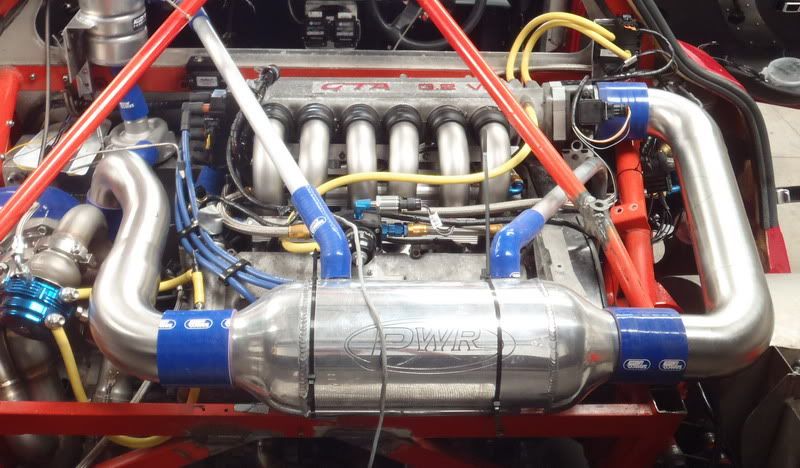

PWR Water Cooled Charge Cooler & Pre Rad
Stainless 321 Exhaust headers / system
HI-Spec Brakes - Billet 4 Calipers & 325mm Vented discs



Turbo Exhaust Wastegate.jpg




Hope to get it finished for Summer 2012.........

Cheers
Neil

Anatolevg
Posts: 10
Joined: Tue Jan 08, 2008 8:05 am

Re: Alfa Engined Stratos Turbo Sport 2000

Postby Anatolevg » Wed May 25, 2011 4:38 am

nice project.

good luck.

fdahl_009
Posts: 53
Joined: Fri Jan 09, 2009 7:16 am

Re: Alfa Engined Stratos Turbo Sport 2000

Postby fdahl_009 » Wed May 25, 2011 6:20 am

Interesting project..

Which of the gearboxes are you using?

I have an '97 Alfa GTV TB with an custom built 12V engine, Turbonetics E60 .82 ar turbo and Sport 1000 ecu.

I use the original tb 5speed box, it once ripped all the teeth for both 3rd gear gears straight off. I installed an another gearset from a tb box, have been running fine since (should be the same specs), even with more power and torque..

What oil are you using?

Would it be possible to get to know the header pipe dimensions, and the dimensions of the collector pipes before the turbo?

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Sat May 28, 2011 4:07 pm

I Am using the 5 Speed Gearbox from the 164 24V V6.
It will be fitted with a strengthening plate as they used on the integrale boxes hopefully to avoid stripping 3rd gear. I have one brand new unused box & a couple of used ones, so i should have enough to keep me going for a while. This will be fitted with a plate type LSD.

I Am traveling, and will get back to you on the exhaust sizes.

Oil will be Miller CFS 10W60 in the engine & Redline MT90 for the gearbox.
Neil - AKA Turbonutter
http://WWW.turbonutter.net

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Wed Jun 01, 2011 2:46 am

Re exhaust dimensions - I am assuming you want to know the diameter of the tube,

Headders are 41mm OD
Collectors are 50mm OD

After turbo diameter is 76mm OD.

Cheers
Neil

fdahl_009
Posts: 53
Joined: Fri Jan 09, 2009 7:16 am

Re: Alfa Engined Stratos Turbo Sport 2000

Postby fdahl_009 » Wed Jun 01, 2011 5:44 am

Ok, thanks.

I have 35mm ID headers, 48mm ID collectors. T3 flange. 3" after turbo - so pretty much the same..
I do not know a lot about those cars, but I have built several of these engines in 12v configuration, both na and forced.

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Thu Oct 06, 2011 8:32 am

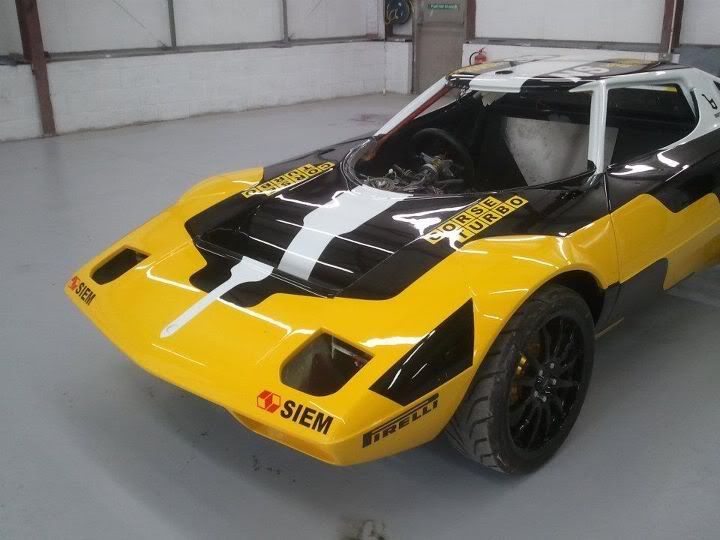

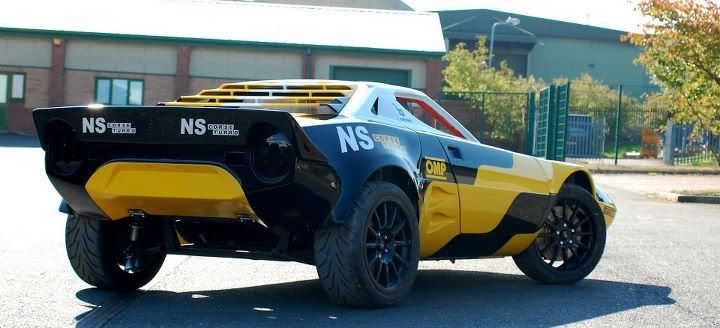

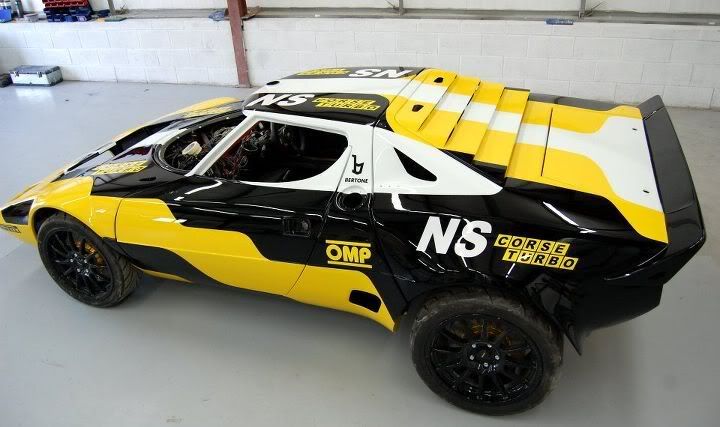

I am away at work, but left the car in local paint shop - with the following excellent results - just need to get home and finish it off now.....



All the spoilers and light pods are still to go on but it is looking good....
Neil - AKA Turbonutter
http://WWW.turbonutter.net

User avatar
BRIAN MP5T
Posts: 1106
Joined: Sun Feb 01, 2009 4:05 pm
Location: OTTAWA
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby BRIAN MP5T » Thu Oct 06, 2011 8:39 pm

Awesome car with a short wheelbase and unmistakable silhouette.

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Sun Oct 23, 2011 12:30 pm

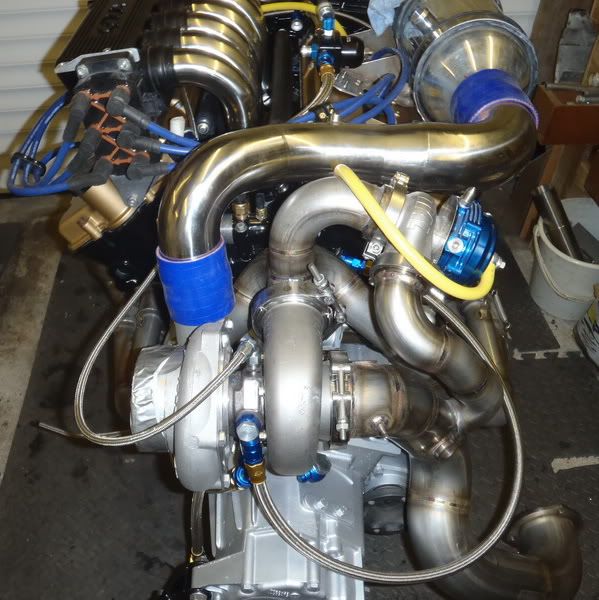

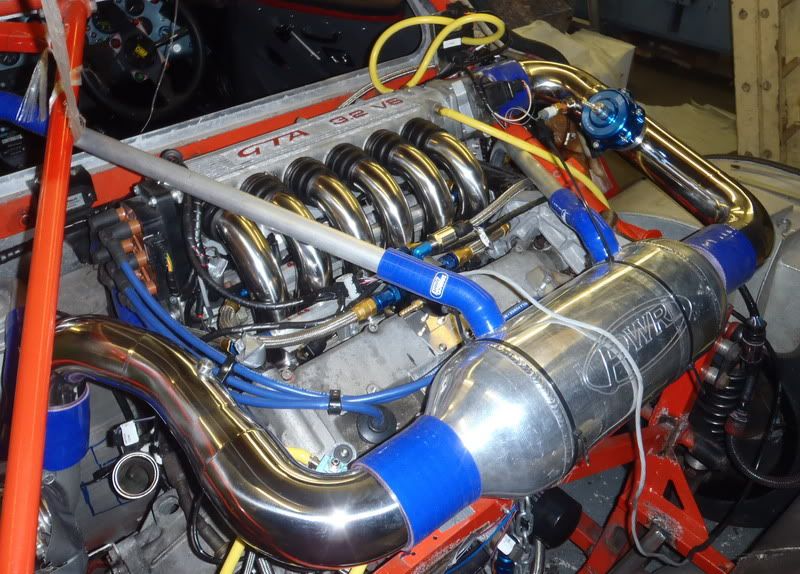

It was looking well in the engine department before i Stripped it down for painting.


Neil - AKA Turbonutter
http://WWW.turbonutter.net

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Tue Mar 20, 2012 12:38 pm

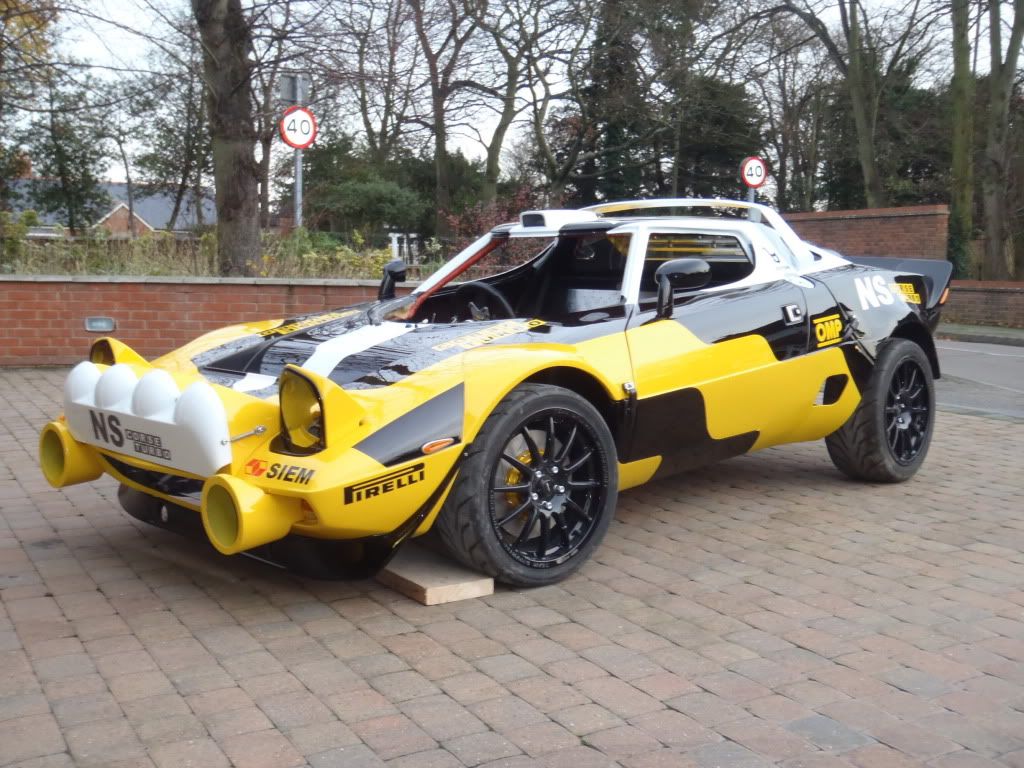

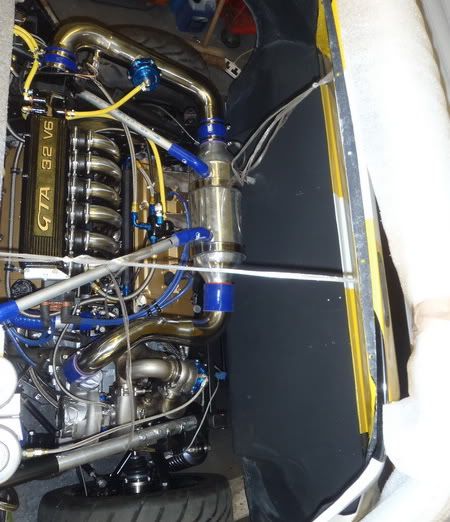

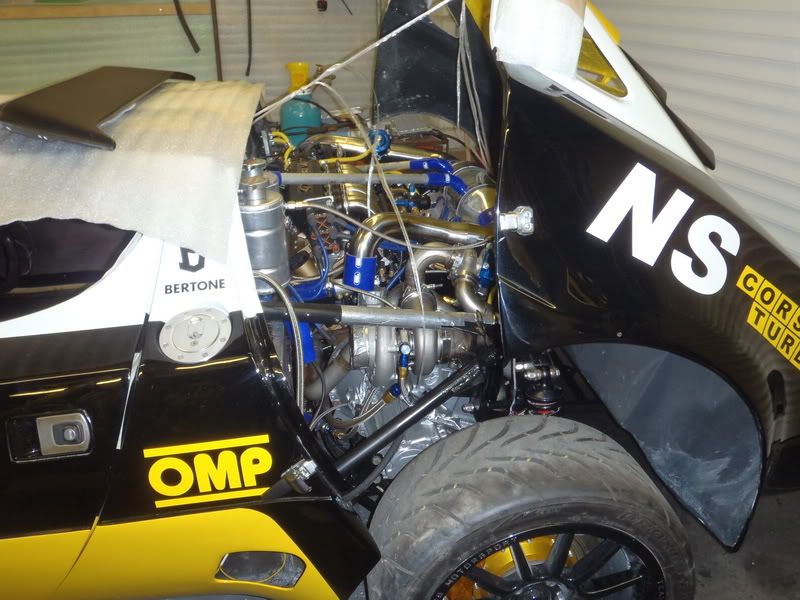

Latest Update before I left for work, Car is more or less together & engine has been rebuilt - another month at work, then I can finish the engine and get it mapped then hopefully get the car on the road for summer :D





Cheers
Neil - AKA Turbonutter
http://WWW.turbonutter.net

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Fri May 18, 2012 9:00 am

First Power Run today at AET Motorsport on their hub dyno...


The numbers are bang on what I wanted - 450 at the wheels, so 500BHP at the Flywheel :D :D
Neil - AKA Turbonutter
http://WWW.turbonutter.net

LMS_689
Posts: 1397
Joined: Thu Oct 18, 2007 6:30 am
Location: Floyds Knobs, IN USA
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby LMS_689 » Sun May 20, 2012 12:15 am

Very nice. What does the car weigh? At that power level it must be quite the hoot to drive! :twisted:
Haltech Parts and Accessories
Custom Harness Construction
http://www.lms-efi.com
chris@lms-efi.com
502-515-7482

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Wed May 23, 2012 6:44 am

The car weighs I hope under 1100KG.

Final numbers were 475HP & 498 lb/ft at the hubs!

Neil - AKA Turbonutter
http://WWW.turbonutter.net

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Fri Jul 06, 2012 11:56 am

Well I have to say its pretty quick, 0-60 in 3.65 seconds is the best I have clocked so far, but I dont want to try too many times, as I have already wrecked one gearbox

At the moment the second set of gears are starting to get noisy, so time to investigate a new gearbox.......
Neil - AKA Turbonutter
http://WWW.turbonutter.net

turbonutter
Posts: 27
Joined: Mon Dec 20, 2010 7:58 am
Location: England
Contact:

Re: Alfa Engined Stratos Turbo Sport 2000

Postby turbonutter » Thu Apr 11, 2013 5:54 am

The car is now fitted with a Toyota MR2 Turbo Gearbox and has been back to AET Motorsport to sort out a missfire issue, which turned out to be nothing more than a faulty crank sensor, Engine was tweaked while it was there and it now has 492WHP at 1.2 bar :)



https://www.facebook.com/photo.php?v=10152712787705156&set=vb.200972826655095&type=2&theater
Neil - AKA Turbonutter
http://WWW.turbonutter.net
