Software Bug in 2.22 and 2.23??

Postby Flat_Rate » Sat May 06, 2017 2:15 am

Oil pressure sensor diagnostics tab for P0521 cut off..

I sometimes have been randomly getting a DTC for it as well, but unable to see any settings in the software. Older versions seem to work.

User avatar
HaltechMatthew
Haltech Staff
Posts: 2761
Joined: Tue Feb 07, 2012 12:45 pm
Location: Sydney, Australia
Contact:

Re: Software Bug in 2.22 and 2.23??

Postby HaltechMatthew » Mon May 08, 2017 11:46 am

No bug.

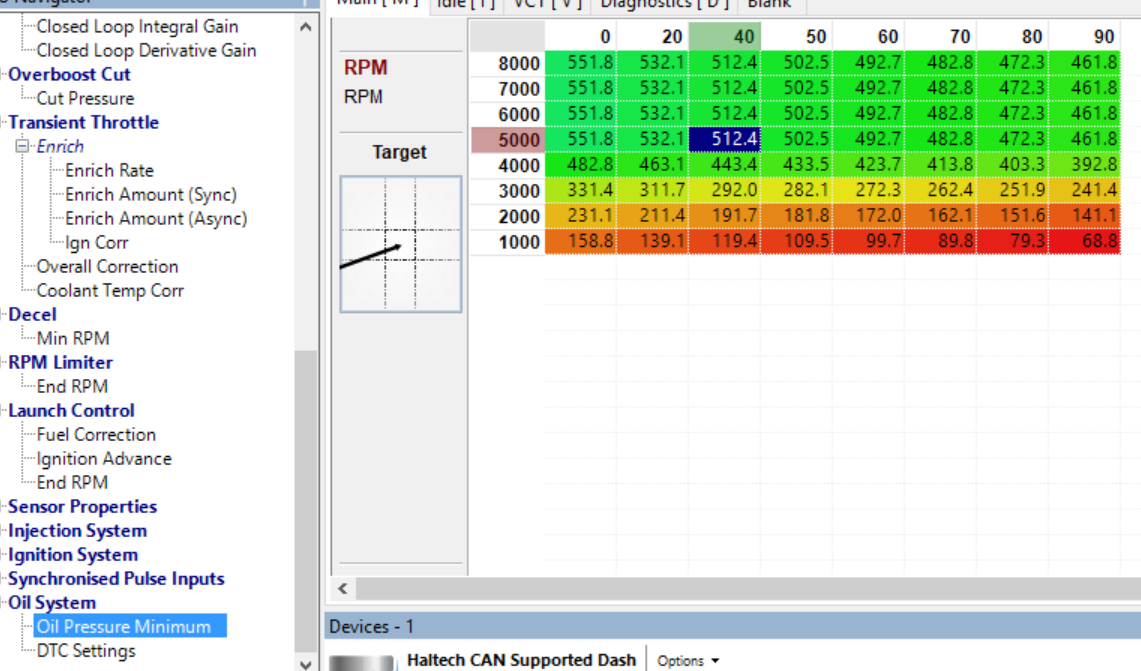

Its now in tables near the bottom under "Oil System" because it is 3D mappable rather than just a setting. Not labelled clearly , I know, but it is there and it even caught me out the first time I used it.

Flat_Rate
Posts: 100
Joined: Wed Jan 20, 2010 12:57 pm

Re: Software Bug in 2.22 and 2.23??

Postby Flat_Rate » Fri Jun 23, 2017 10:23 am

i still get a DTC generally at start up... the DTC's are supposed to not be enabled yet it still comes on.. Thoughts

User avatar
HaltechMatthew
Haltech Staff
Posts: 2761
Joined: Tue Feb 07, 2012 12:45 pm
Location: Sydney, Australia
Contact:

Re: Software Bug in 2.22 and 2.23??

Postby HaltechMatthew » Fri Jun 23, 2017 12:59 pm

There is a min rpm setting as well as a delay to prevent this on startup.

Flat_Rate
Posts: 100
Joined: Wed Jan 20, 2010 12:57 pm

Re: Software Bug in 2.22 and 2.23??

Postby Flat_Rate » Thu Jun 29, 2017 12:24 am

Ill try that, i didnt have anything checked on in the oil pressure Diagnostics tab so i figured it wouldnt throw a DTC. Thanks for the reply.

User avatar
glens_gtr34
Posts: 2
Joined: Sun Nov 19, 2017 4:46 pm

Re: Software Bug in 2.22 and 2.23??

Postby glens_gtr34 » Sun Nov 19, 2017 4:55 pm

Flat_Rate wrote:Ill try that, i didnt have anything checked on in the oil pressure Diagnostics tab so i figured it wouldnt throw a DTC. Thanks for the reply.


Did you end up fixing the issue? Because I just recently got an Oil Pressure sensor fitted with my Elite 2500 and I thought I was in serious trouble because the car had troubles starting up, then when it did, it couldnt idle (tuner set max RPM at 800 for level 3 warning) BUT luckily I took the keys out let it set for about 30 seconds and the car started again.

Got home, plugged in the laptop and sure enough the DTC "P0521 Oil Pressure Sensor Operating" came up. I 'erased' the code and car seems to be all good... for now...

Mobne_s13
Posts: 348
Joined: Sun May 25, 2008 8:56 pm

Re: Software Bug in 2.22 and 2.23??

Postby Mobne_s13 » Tue Apr 24, 2018 8:59 pm

Can you explain exactly what all settings for the oil pressure dtc means?

I’m also triggering oil pressure dtc on first startup because it’s no oil in the pump first second.

I have put the delay in 1000ms, but it does not help.

And I want it to be active on idle rpm say 800.

The settings that relate to “before performing test” does it mean that I can put it on 2000rpm and the rpm must then go over this before the dtc is active? Or is the dtc disabled below this value?

User avatar
HaltechMatthew
Haltech Staff
Posts: 2761
Joined: Tue Feb 07, 2012 12:45 pm
Location: Sydney, Australia
Contact:

Re: Software Bug in 2.22 and 2.23??

Postby HaltechMatthew » Mon Apr 15, 2019 10:39 am

If you have no oil pressure on startup then you cant currently set the activation at such a low RPM or you are tripping it off. It is meant to be set for normal driving and I don't normally set it to trip on engines until you are at an RPM where you will damage the engine, so around 2000 - 2500 rpm, or if the TPS if greater than 1% so it does not trip when you are not trying to rev the engine.
